XGSPON ONU Stick with 8311 Firmware
Free Heatsink + Fan Included
8311 Firmware v2.8.3
In Stock

XGSPON ONU Stick with 8311 Firmware

10G SFP+ Optical Transceiver with Web-Based Management (MAC, IP, SN) – for Mikrotik, Ubiquiti & More

US$119.98$139.99

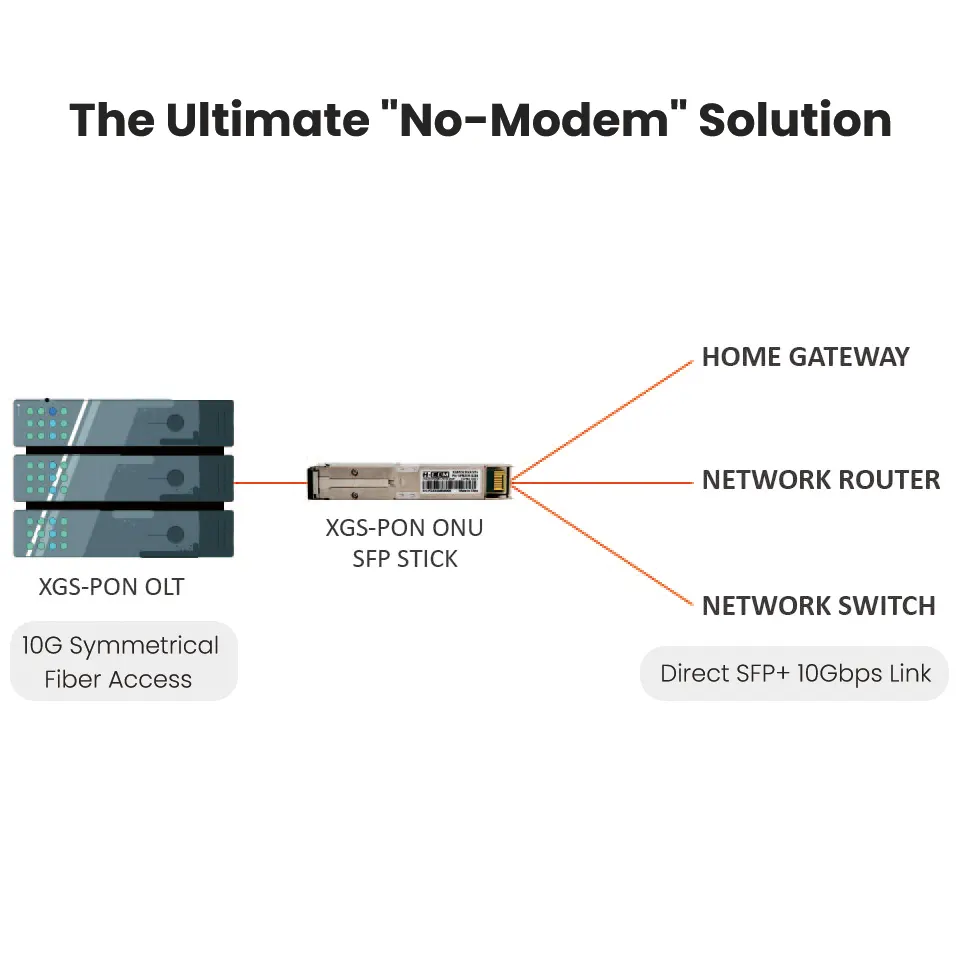

ISP Bypass:Bypass ISP hardware and achieve pure bridge mode by replacing your ONU with an SFP stick.
High Compatibility:Proven support for DiGi, AT&T, Orange, and other major XGS-PON providers.
SFP+ Integration:Compact SFP+ form factor; plugs directly into Mikrotik, Ubiquiti, or SFP+ switches.
Dual-Bank Firmware:Safe upgrading with backup partition to prevent bricking.

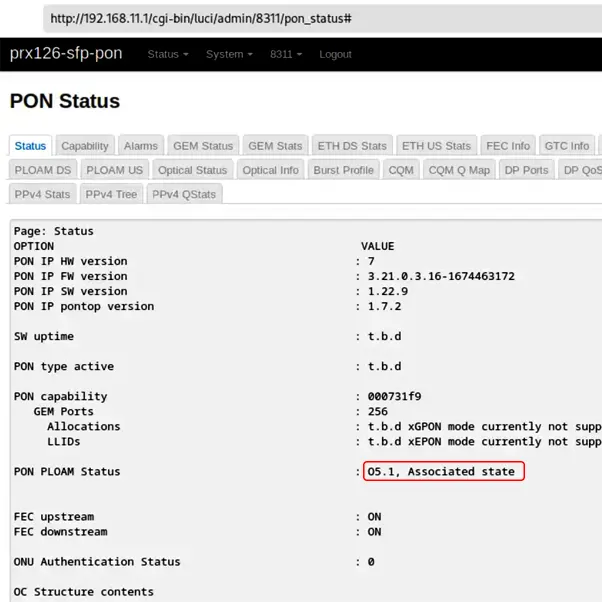

Web GUI: 192.168.11.1
High-Performance PRX126 Chipset
Carrier-Grade OMCI Stack
Symmetric 10Gbps Throughput
Quantity:
Total: $119.98

Secure checkout • 100% buyer protection

Contact for help
WhatsApp Email
Share:

Technical Specifications

Form FactorSFP+ with SC/APC receptacle
Data LinkTX 9.953 Gb/s / RX 9.953 Gb/s
SoCMaxLinear PRX126 @ 400 MHz
NAND / RAM128 MB NAND / 1 GB RAM
Wavelength1270 nm / 1577 nm
TX Power4 ~ 9 dBm
RX Sensitivity< -29 dBm
Web Management IP192.168.11.1
Power Consumption< 2.5 Watt
Operating Temp-40°C to 85°C

Watch: XGSPON ONU Stick Deep Dive

Complete setup guide, 8311 firmware walkthrough, and performance benchmarks.

Watch on YouTube
YouTube video preview: XGSPON ONU Stick Deep Dive

Frequently Asked Questions

Troubleshooting Connectivity or DDM Issues?

Comprehensive guide for debugging, Linux DDM commands, and OMCI configuration.

Visit Official Troubleshoot Wiki

Which OLTs are compatible?

ZTE C600 series, Huawei MA5800 series, Nokia OLT7360 series, and most standard OLTs. Not compatible with FiberHome.

How to access web management?

Default IP: 192.168.11.1. Username: root, no password. Ensure your computer is in the same subnet.

Does it require active cooling?

The module runs warm but within spec (operating temp -40°C to 85°C). However, the included free heatsink + fan improves longevity, especially in high-density switches or enclosed spaces.

Can I ugrade firmware?

Yes! The 8311 firmware is pre-installed in both flash banks. You can upgrade via the web interface or UART. Community support is available on pon.wiki.

Package & Shipping

What's in the box

  • XGSPON ONU Stick (SFP+ module)
  • Cooling fan with EU/US plug
  • Free heatsink

Shipping

  • US$ 8 shipping via e-Packet (10-20 days)
  • Tracking number provided
  • Ships from Hunan, China
